Features
Key Features
Eurospan is a contemporary profile that contributes to a pleasing wide pan tray with an expressed seam detail. Not reliant on substrate makes this profile a popular choice. The Eurospan profile is simply fixed directly to purlins and by eliminating the substrate, this profile contributes to reducing construction costs. Eurospan has the option to be swaged and is also available for fully vented designs. Ideally suited to pre-painted steel but may also be formed in Copper, Zinc and Aluminium. Please contact Metal Design Solutions to discuss your project requirements.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

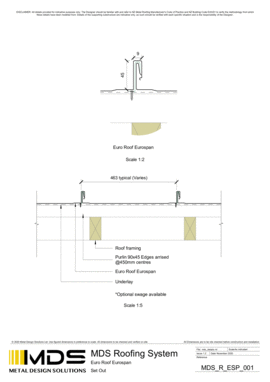

MDS_R_ESP_001
Set Out
MDS_R_ESP_002A
Roof to Gutter

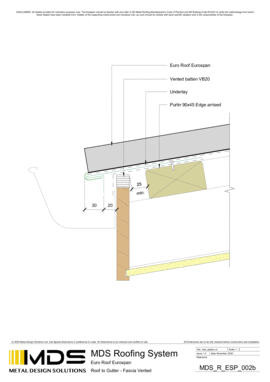

MDS_R_ESP_002B
Roof To Gutter - Fascia Vented

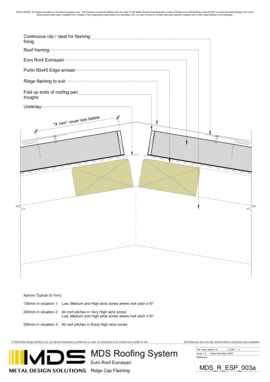

MDS_R_ESP_003A
Ridge Cap Flashing

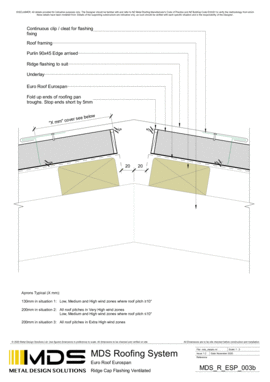

MDS_R_ESP_003B
Ridge Cap Flashing Ventilated

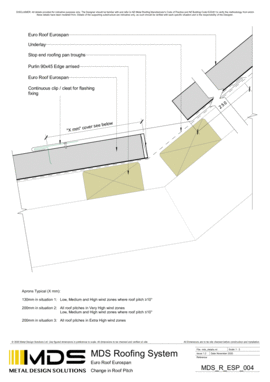

MDS_R_ESP_004
Change In Roof Pitch
MDS_R_ESP_005
Verge

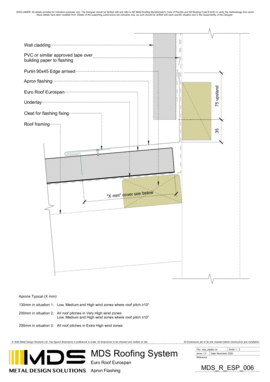

MDS_R_ESP_006
Apron Flashing

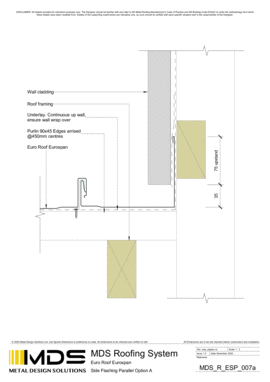

MDS_R_ESP_007A
Side Flashing Parallel Option A

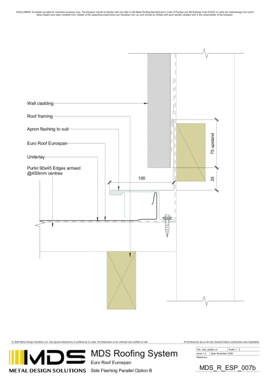

MDS_R_ESP_007B
Side Flashing Parallel Option B

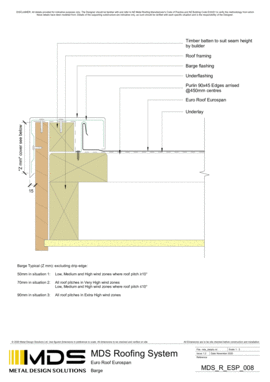

MDS_R_ESP_008
Barge

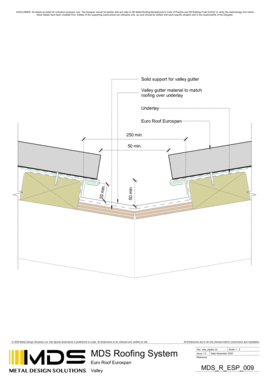

MDS_R_ESP_009
Valley

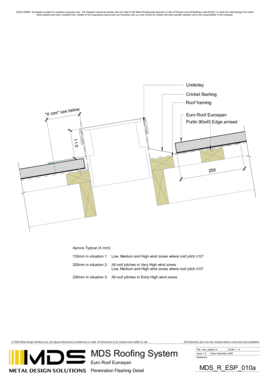

MDS_R_ESP_010A
Penetration Flashing Detail

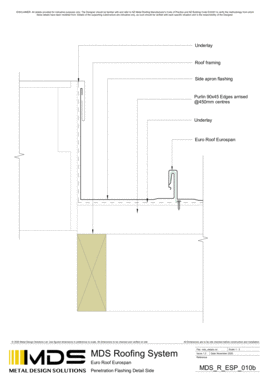

MDS_R_ESP_010B
Penetration Flashing Detail Side

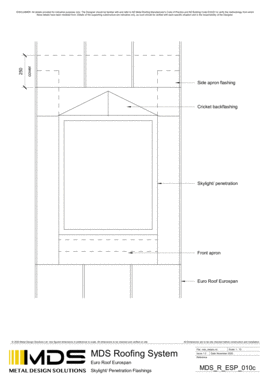

MDS_R_ESP_010C
Skylight - Penetration Flashings

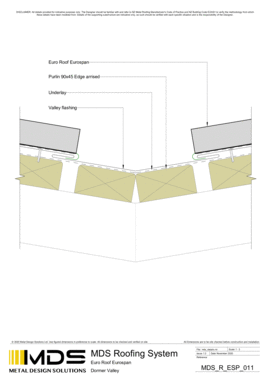

MDS_R_ESP_011
Dormer Valley
