Features
Key Features

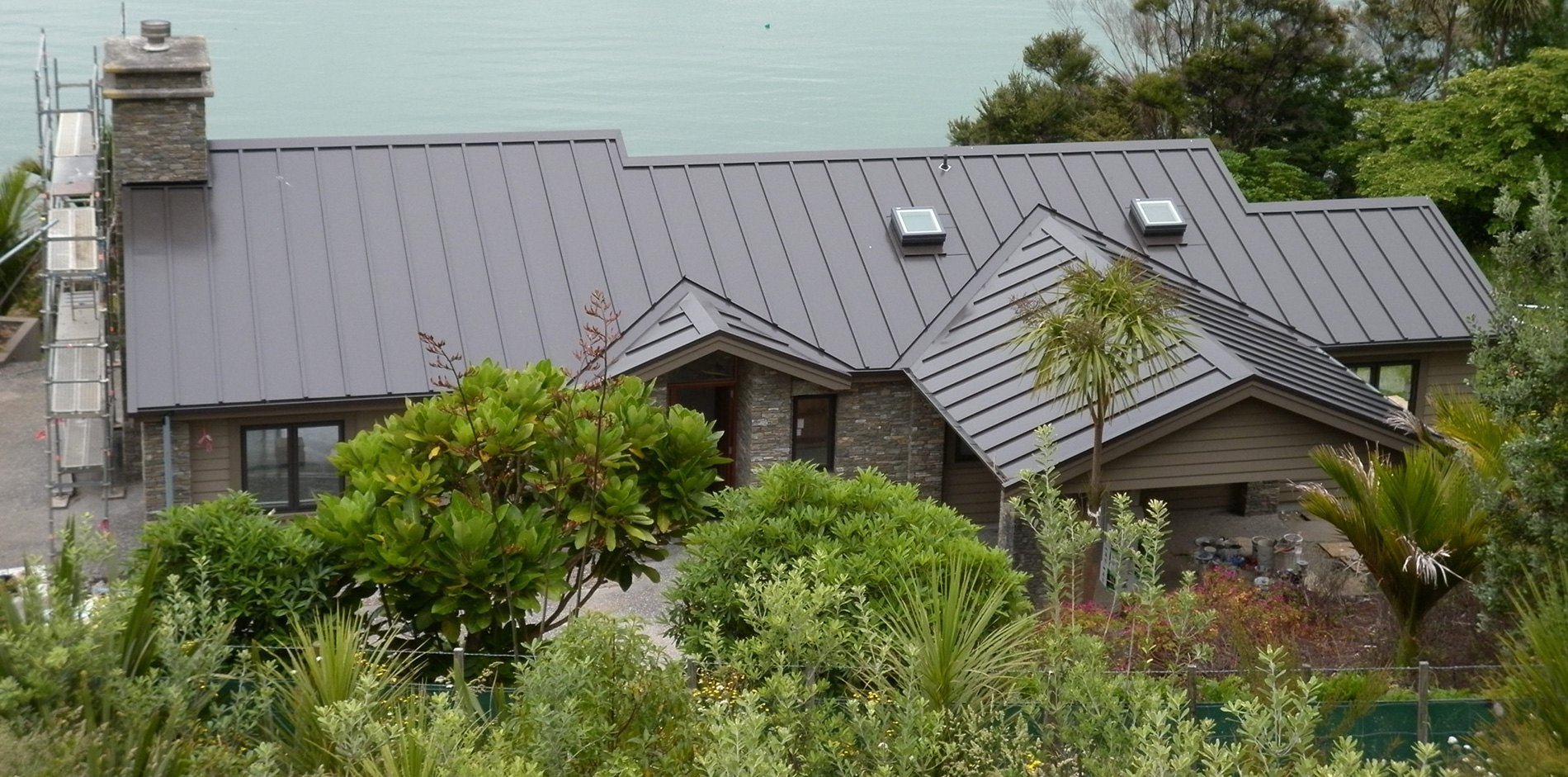

Originating in Europe this profile contributes to a pleasing wide pan tray with a distinctive seam flashing. This profile is suitable for roof and wall cladding. The roll seam profile is fixed to a substrate with a concealed clip. Roll Seam profile may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

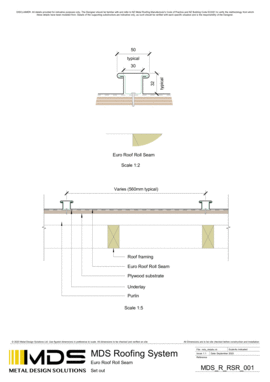

MDS_R_RSR_001
Set Out

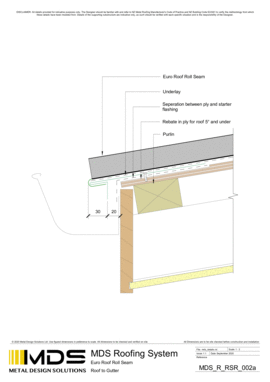

MDS_R_RSR_002A
Roof to Gutter

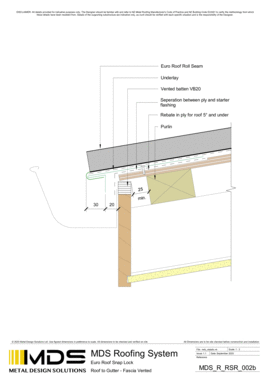

MDS_R_RSR_002B
Roof To Gutter - Fascia Vented

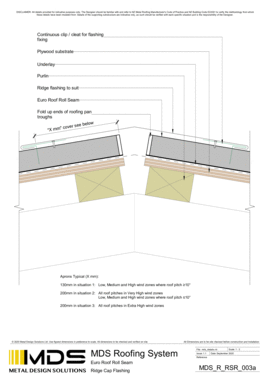

MDS_R_RSR_003A
Ridge Cap Flashing
MDS_R_RSR_003B
Ridge Cap Flashing Ventilated

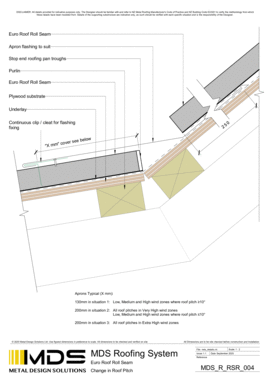

MDS_R_RSR_004
Change In Roof Pitch

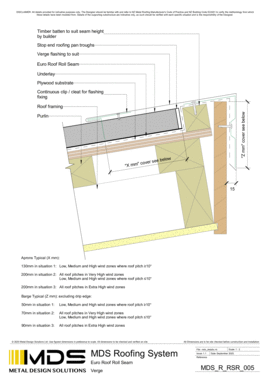

MDS_R_RSR_005
Verge

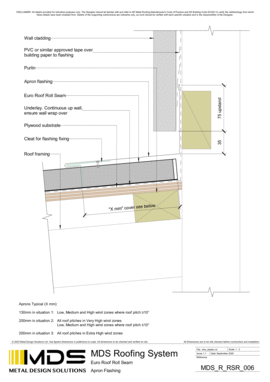

MDS_R_RSR_006
Apron Flashing

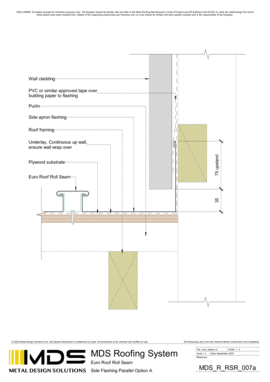

MDS_R_RSR_007A
Side Flashing Parallel Option A

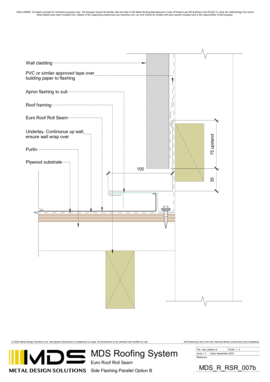

MDS_R_RSR_007B
Side Flashing Parallel Option B

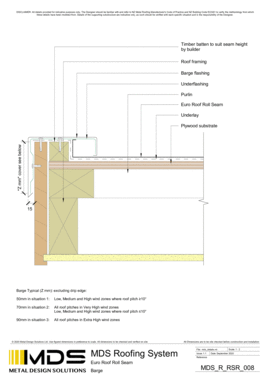

MDS_R_RSR_008
Barge

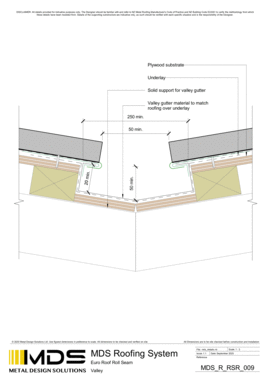

MDS_R_RSR_009
Valley

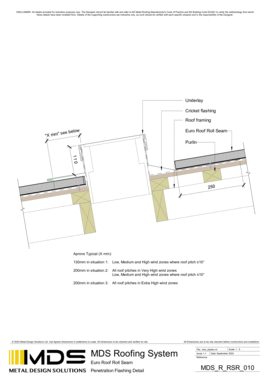

MDS_R_RSR_010
Penetration Flashing Detail

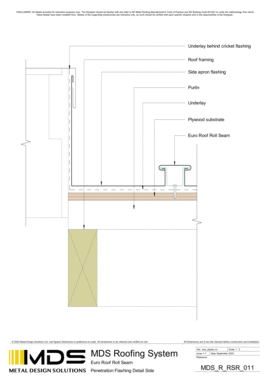

MDS_R_RSR_011
Penetration Flashing Detail Side

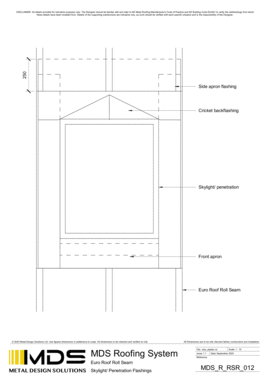

MDS_R_RSR_012
Skylight - Penetration Flashings

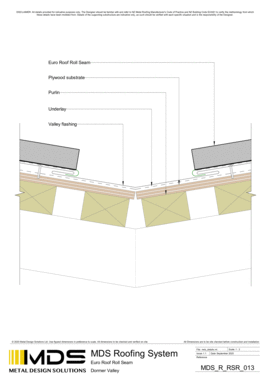

MDS_R_RSR_013
Dormer Valley
