Features
Key Features

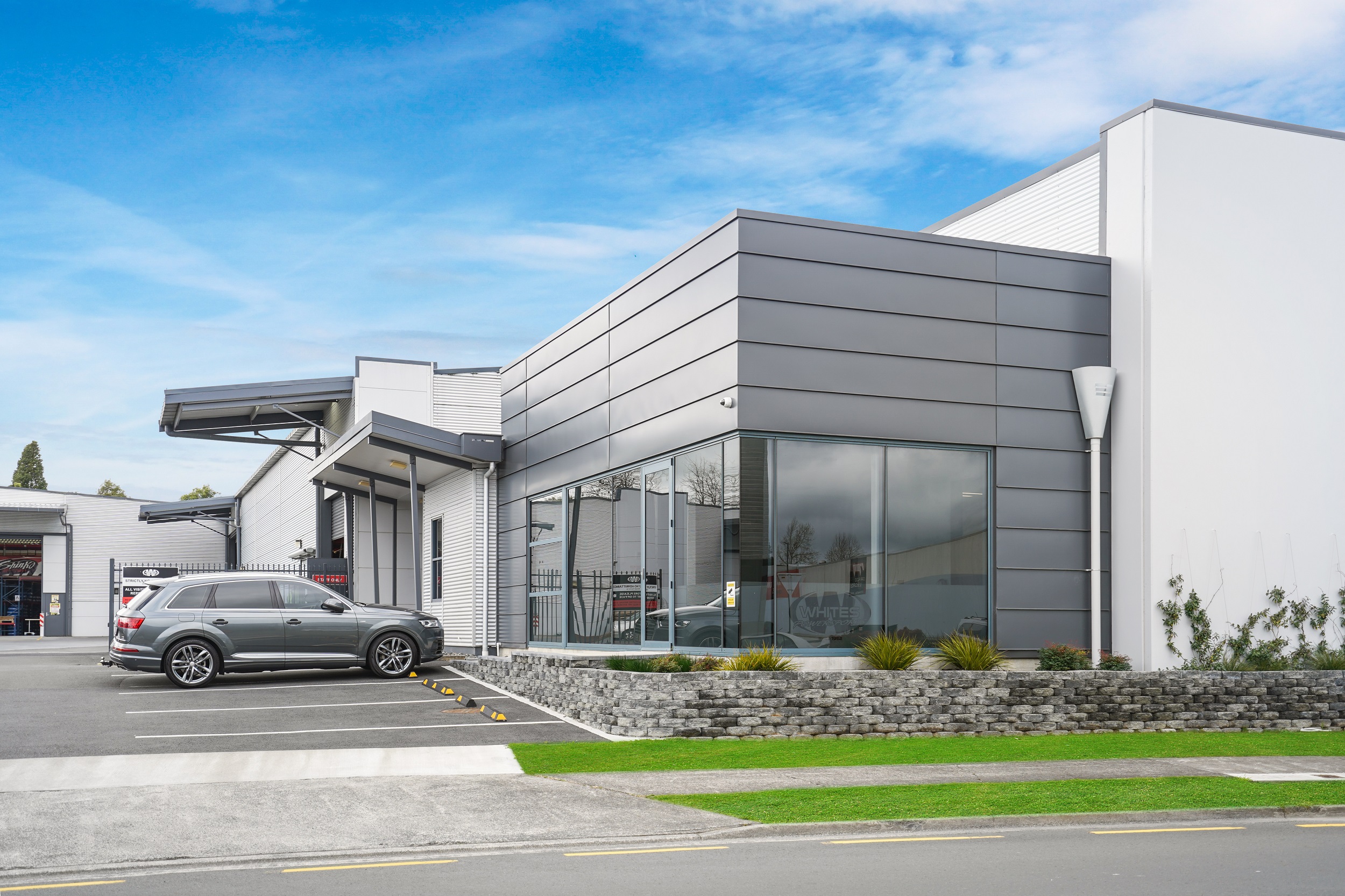

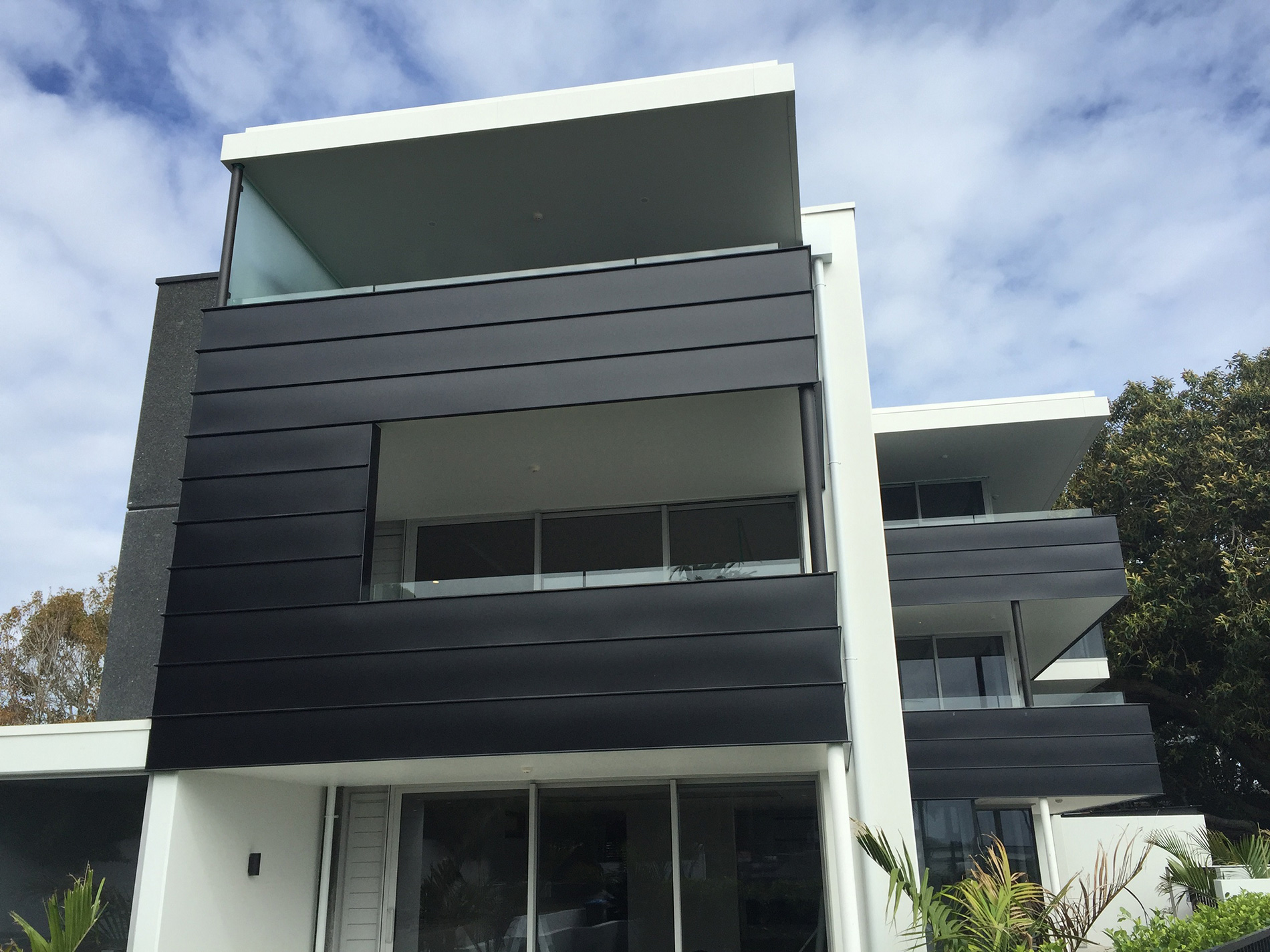

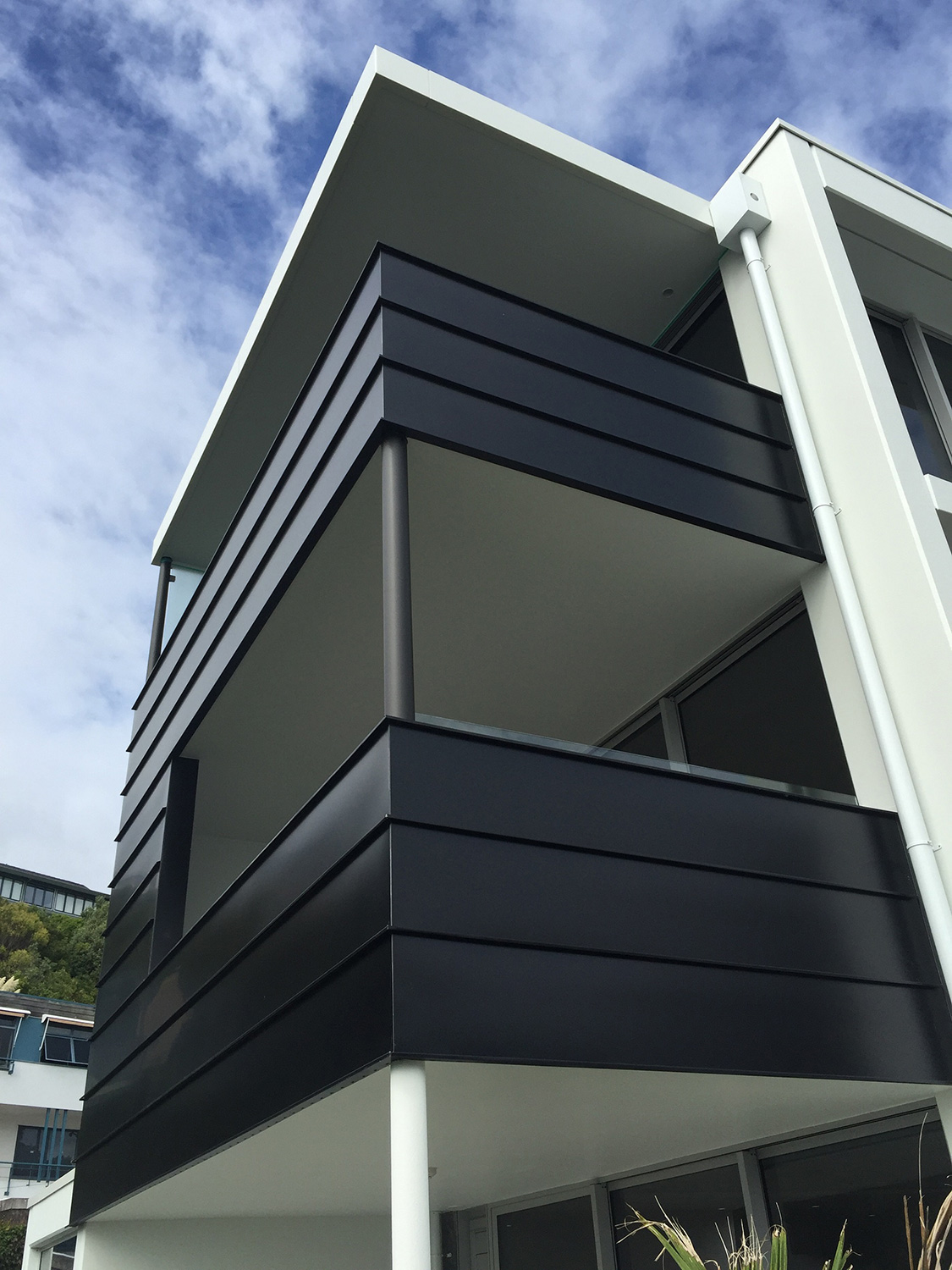

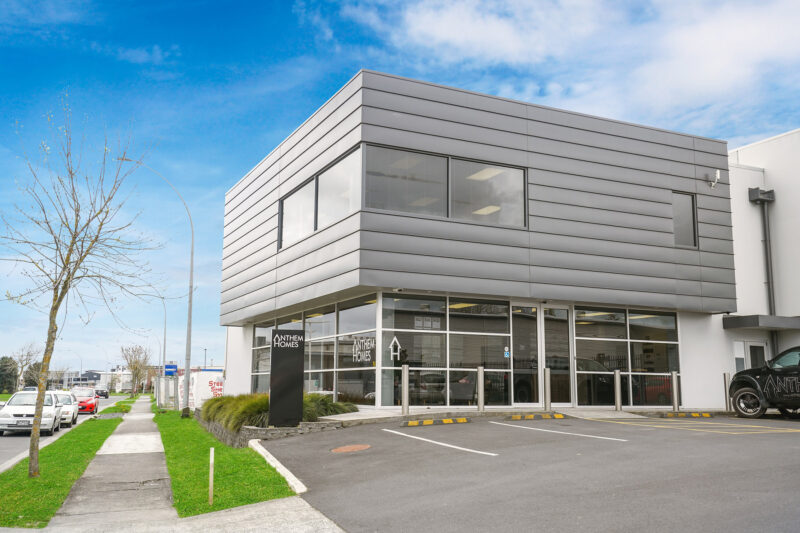

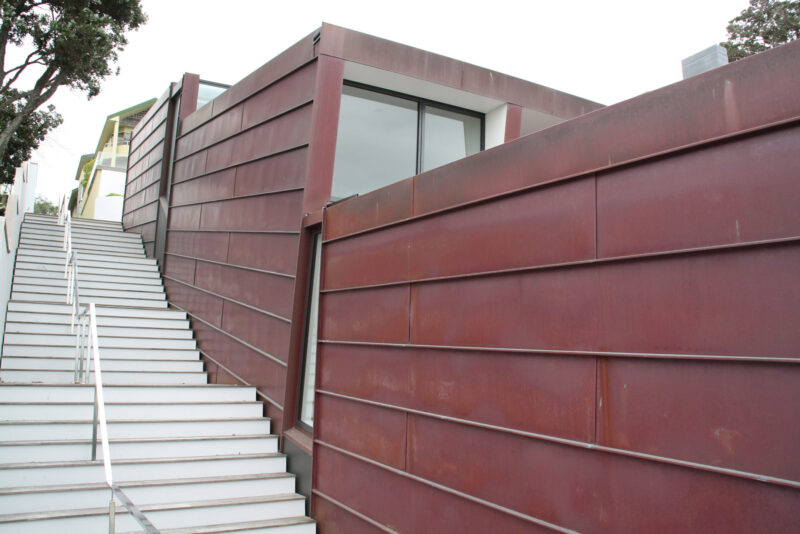

Originating in Europe this profile contributes to a pleasing wide pan tray and is available in seam heights of 25mm or 38mm but usually formed at 25mm. The Angle Seam profile is fixed to a substrate with concealed clips. The angle seam may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

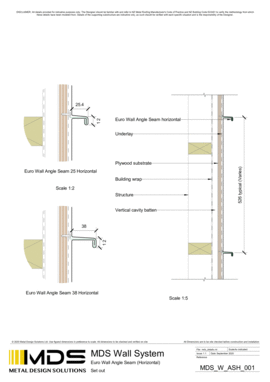

MDS_W_ASH_001
Set Out

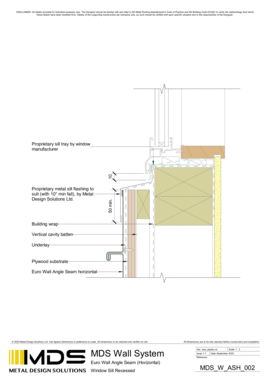

MDS_W_ASH_002
Window Sill Recessed

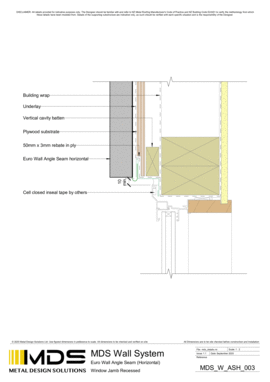

MDS_W_ASH_003
Window Jamb Recessed
MDS_W_ASH_004
Window Head Recessed

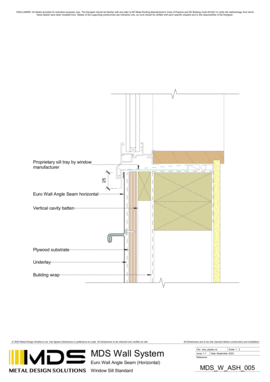

MDS_W_ASH_005
Window Still Standard

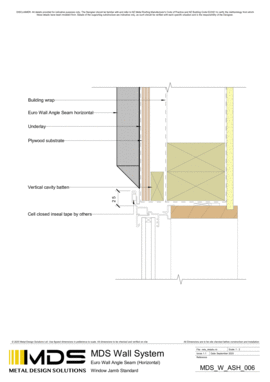

MDS_W_ASH_006
Window Jamb Standard

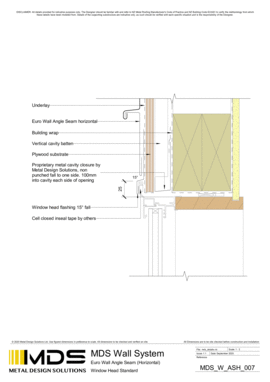

MDS_W_ASH_007
Window Head Standard

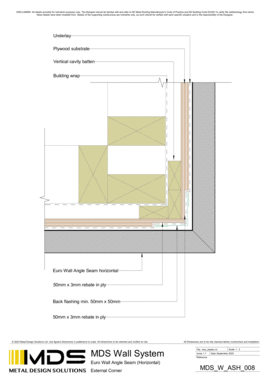

MDS_W_ASH_008
External Corner

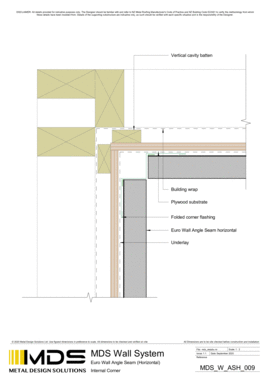

MDS_W_ASH_009
Internal Corner

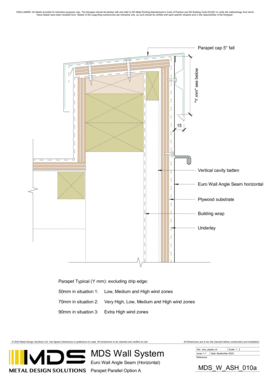

MDS_W_ASH_0010A
Parapet Parallel Option A

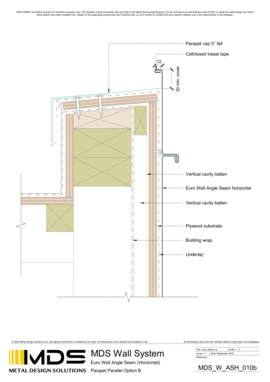

MDS_W_ASH_0010B
Parapet Parallel Option B

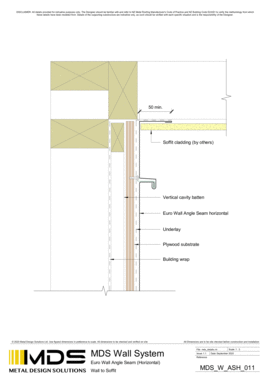

MDS_W_ASH_011
Wall To Soffit

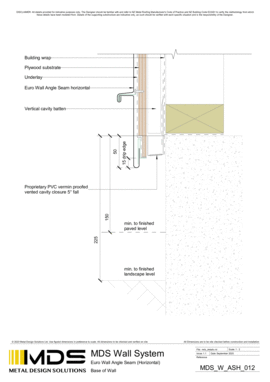

MDS_W_ASH_012
Base Of Wall
