Features
Key Features

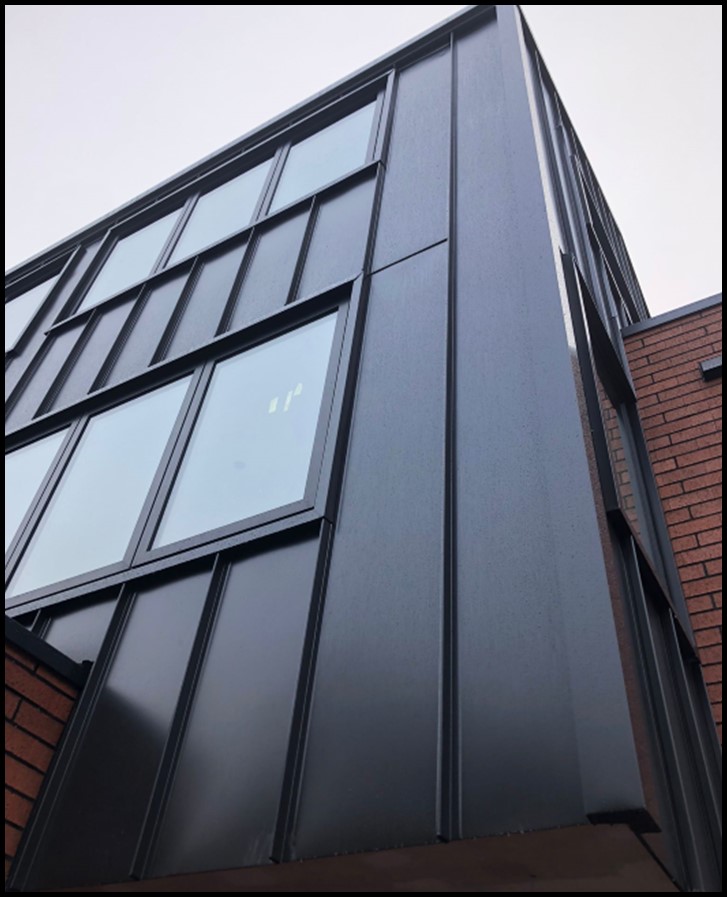

Eurospan is a contemporary profile that contributes to a pleasing wide pan tray with an expressed seam detail. Not reliant on substrate makes this profile a popular choice. The Eurospan profile is simply fixed directly to cavity battens and by eliminating the substrate, this profile contributes to reducing construction costs. Eurospan has the option to be swaged. Ideally suited to pre-painted steel but may also be formed in Copper, Zinc and Aluminium. Please contact Metal Design Solutions to discuss your project requirements.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

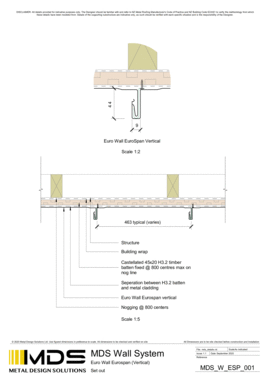

MDS_W_ESP_001
Set Out

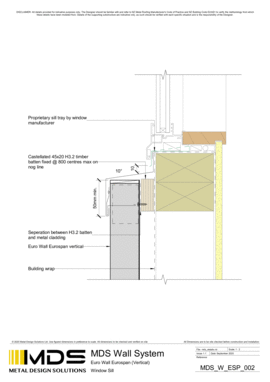

MDS_W_ESP_002
Window Sill

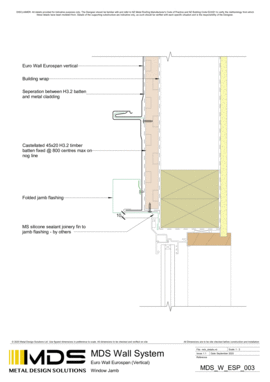

MDS_W_ESP_003
Window Jamb
MDS_W_ESP_004
Window Head

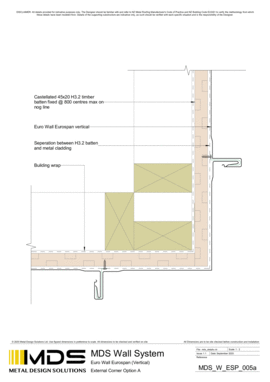

MDS_W_ESP_005A
External Corner Option A

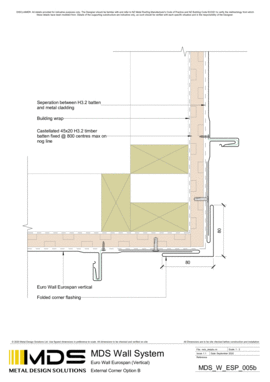

MDS_W_ESP_005B
External Corner Option B
MDS_W_ESP_006A
Internal Corner Option A

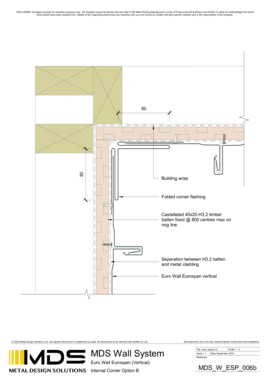

MDS_W_ESP_006B
Internal Corner Option B

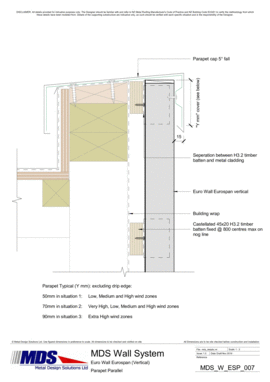

MDS_W_ESP_007
Parapet Parallel

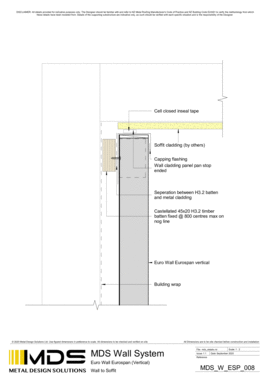

MDS_W_ESP_008
Wall To Soffit

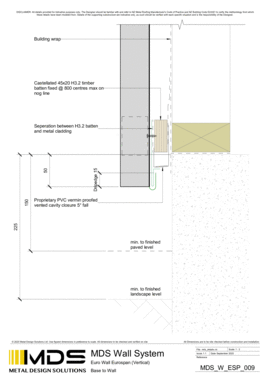

MDS_W_ESP_009
Base To Wall
MDS_W_ESP_010
Commercial Window Sill

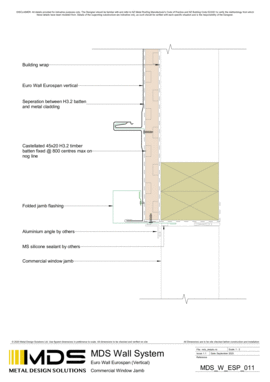

MDS_W_ESP_011
Commercial Window Jamb
MDS_W_ESP_012
Commercial Window Head
