Features
Key Features
The cassette panel offers a modern and flat appearance. As a self supporting system it relies on the panels being connected by way of interlocking groove. This gives the elegant appearance of a recessed joint. The Cassette system can be installed horizontally or vertically and is fixed with concealed fixings directly over cavity battens. This profile may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

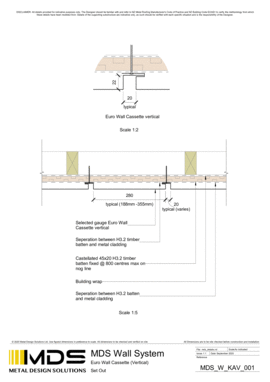

MDS_W_KAV_001
Set Out

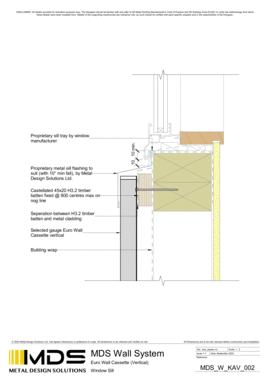

MDS_W_KAV_002
Window Sill

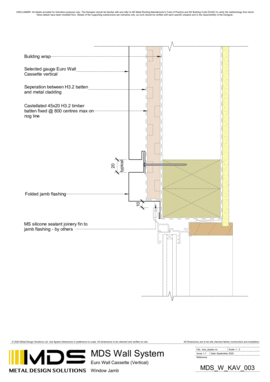

MDS_W_KAV_003
Window Jamb

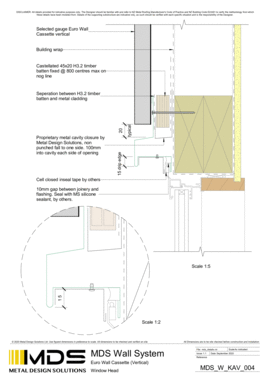

MDS_W_KAV_004
Window Head
MDS_W_KAV_005
External Corner

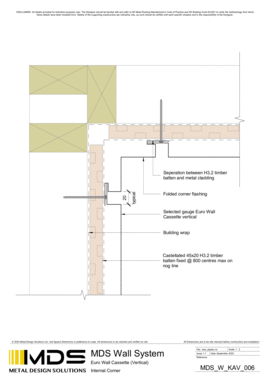

MDS_W_KAV_006
Internal Corner

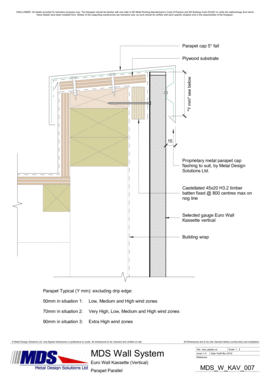

MDS_W_KAV_007
Parapet Parallel

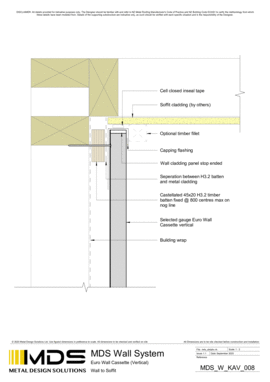

MDS_W_KAV_008
Wall To Soffit

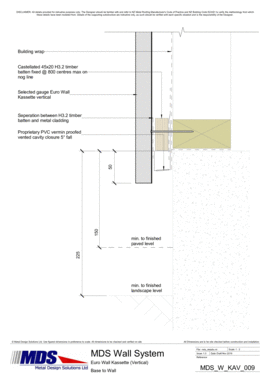

MDS_W_KAV_009
Base To Wall
