Features
Key Features

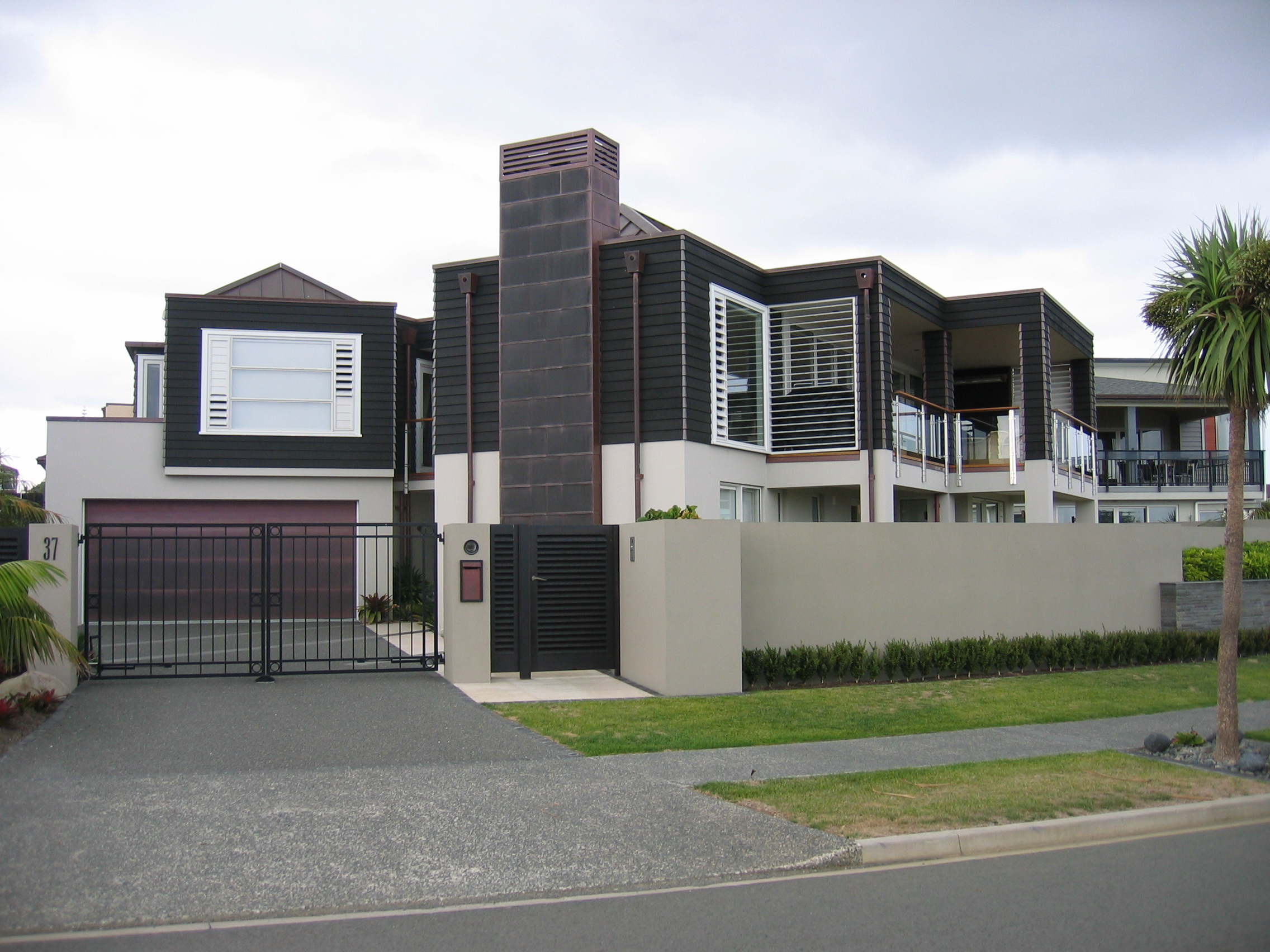

Lock Seam is formed with expressed welted seams at panel edges. Limited in length and width, it offers the designer many options for their façade design. Panels are mechanically attached to the substrate using concealed clips. This profile may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

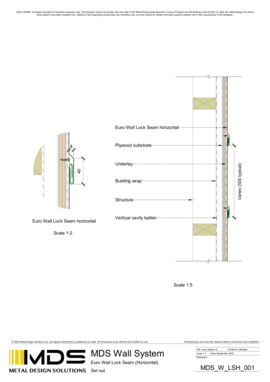

MDS_W_LSH_001
Set Out

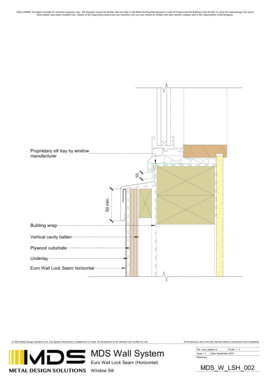

MDS_W_LSH_002
Window Sill

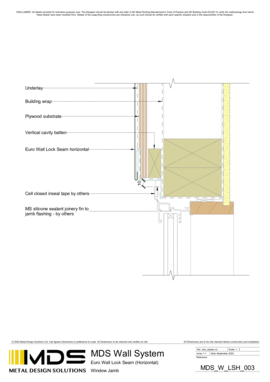

MDS_W_LSH_003
Window Jamb
MDS_W_LSH_004
Window Head

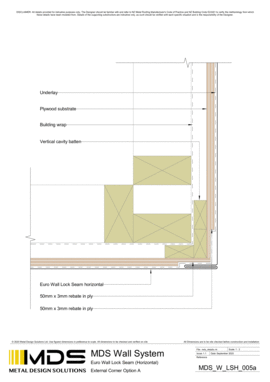

MDS_W_LSH_005A
External Corner Option A

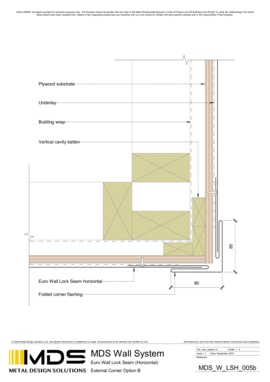

MDS_W_LSH_005B
External Corner Option B

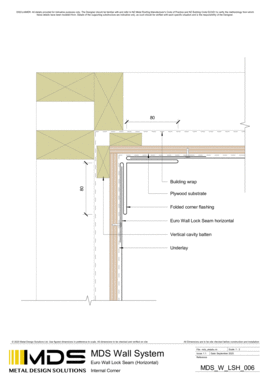

MDS_W_LSH_006
Internal Corner

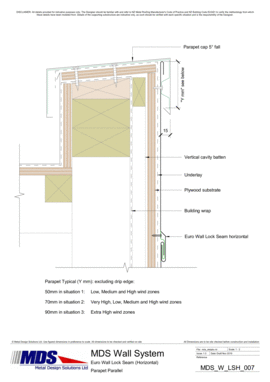

MDS_W_LSH_007
Parapet Parallel
MDS_W_LSH_008
Wall To Soffit

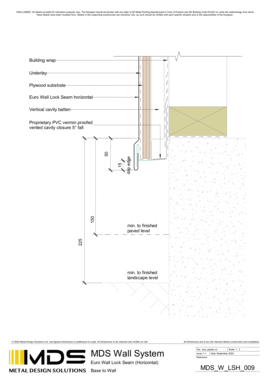

MDS_W_LSH_009
Base To Wall
