Features
Key Features
Eurospan is a contemporary profile that contributes to a pleasing wide pan tray with an expressed seam detail. Not reliant on substrate makes this profile a popular choice. The Eurospan profile is simply fixed directly to purlins and by eliminating the substrate, this profile contributes to reducing construction costs. Eurospan has the option to be swaged and is also available for fully vented designs. Ideally suited to pre-painted steel but may also be formed in Copper, Zinc and Aluminium. Please contact Metal Design Solutions to discuss your project requirements.
Downloads
Select the individual details to add to your set by clicking images below - a full pdf set from here.

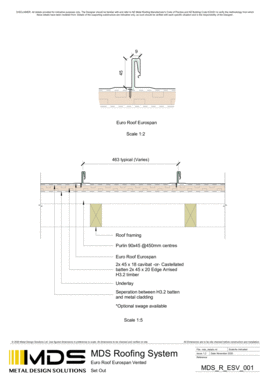

MDS_R_ESV_001
Set Out

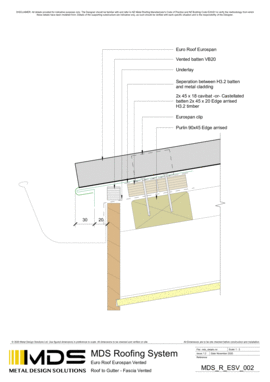

MDS_R_ESV_002
Roof to Gutter - Fascia Vented
MDS_R_ESV_003A
Ridge Cap Flashing
MDS_R_ESV_003B

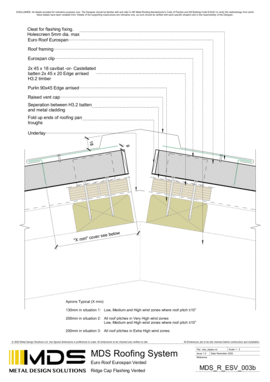

Ridge Cap Flashing Ventilated

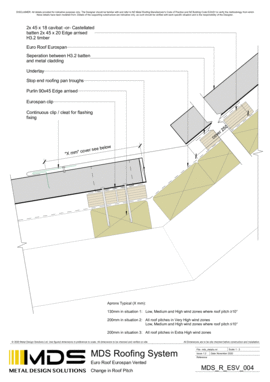

MDS_R_ESV_004
Change In Roof Pitch

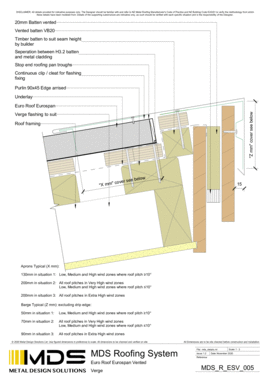

MDS_R_ESV_005
Verge

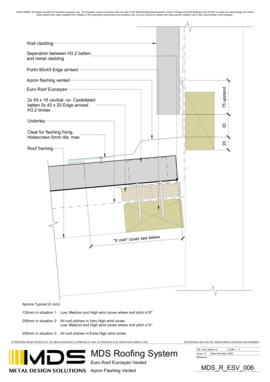

MDS_R_ESV_006
Apron Flashing Vented

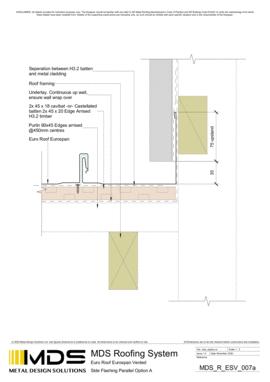

MDS_R_ESV_007A
Side Flashing Parallel Option A

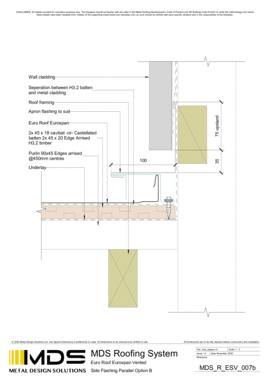

MDS_R_ESV_007B
Side Flashing Parallel Option B
MDS_R_ESV_008
Barge
MDS_R_ESV_009

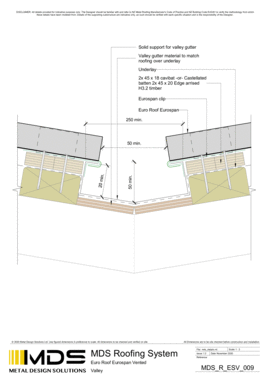

Valley

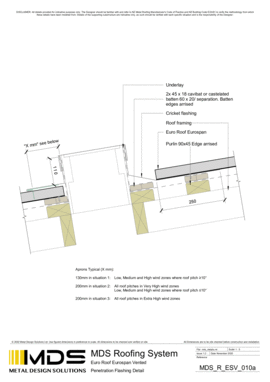

MDS_R_ESV_010A
Penetration Flashing Detail
MDS_R_ESV_010B

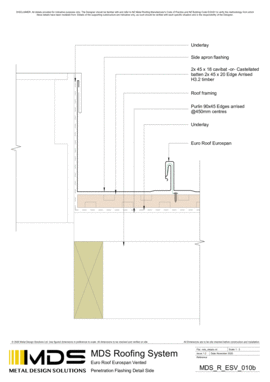

Penetration Flashing Detail Side

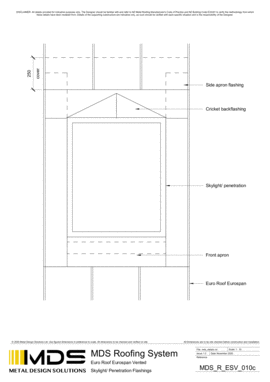

MDS_R_ESV_010C
Skylight - Penetration Flashings

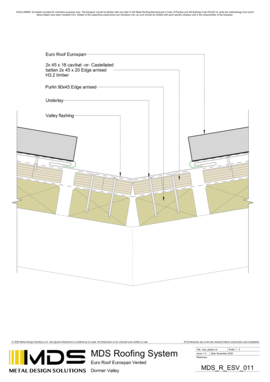

MDS_R_ESV_011
Dormer Valley
